Controlled Environment Agriculture Systems – CEAPlex™ Modular

Controlled Environment Agriculture (CEA) refers to cultivating plants within an enclosed controlled environment with specific parameters like temperature, humidity, light, and nutrients growing conditions to optimize growth. Unlike traditional farming methods, CEA can control all of the elements to ensure the best environment for growing plants.

CEA farming can allow for year-round growing conditions for the production of locally sourced produce in almost any location regardless of external growing conditions. This means fresh high value crops can be grown without the need for external utility power, water sources, seeds, fertilizers, or sunlight. A complete turnkey indoor farming facility, hauled in, assembled, and ready to operate. A complete training program for your operations team while your CEAPlex modular cea facilities are being built.

We were highlighted on two Podcasts listed below.

Introducing CEAPlex Modular

Biz-Reps and Alta-CEA have developed a complete modular indoor growing environment that can provide all the necessary outdoor elements to grow food like  leafy greens, vine crops, root crops, strawberries, and mushrooms. Using Indoor, CEA Vertical Farm Hydroponic Growing Technology, these modulars are designed and engineered to operate almost anywhere. By adding high quality solar power technology combined with a water filtration system the entire unit becomes a self-contained growing farm that can operate anywhere from the desert to urban areas.

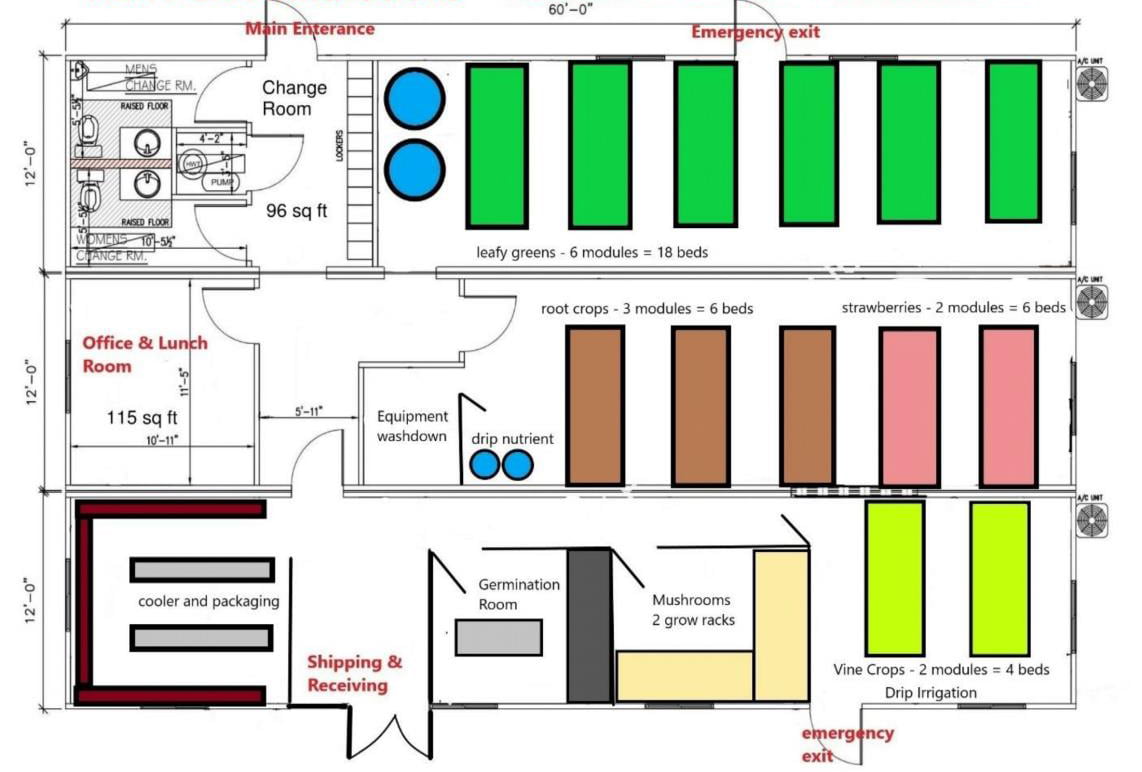

CEAPlex Modular 2160sq-ft Unit
CEAPlex Modular, Self-Contained “Turn-Key”, 2160 sq ft Unit

Includes

  • Vertical Farm, multi-level grow systems
  • Easy To Use Hydroponic Growing Technology,
  • Controlled LED lights and HVAC
  • Water & Nutrient Tanks with Auto Drip Irrigation
  • Germination Room
  • Mushroom Grow Room
  • Bathroom &Change Room
  • Admin Office & Lunchroom
  • Cooler, Packaging & Storage Room
  • One-stop shopping for growing supplies.
  • Wi-Fi Remote camera & audio for support contact

CEA Technology

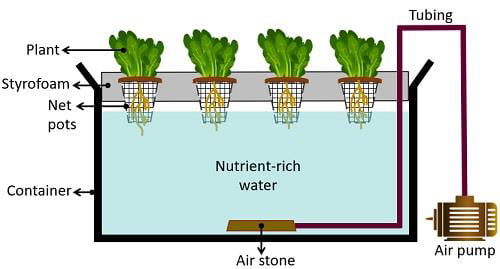

Deep Water Culture (DWC) Hydroponics

is a hydroponic growing and farming method of plant production primarily dedicated to leaf greens, herbs, and flowers by means of suspending the plant roots in nutrient-rich, well oxygenated water. Perfect for food production of leafy greens, herbs and flowers.

There are 5 critical parts of DWC technology:

  1. Water: Think of this system as if you’re growing in soil and permanently watering
    your plants
  2. Nutrients: we have no soil, so we need to supplement the oxygen-rich water and well-balanced nutrients so our plants receive the right level of nutrients to  grow.
  3. Oxygen: roots are submerged in water and not soil (which has gaps and holes where air resides), the water needs to be well oxygenated.
  4. Water Flow: maintaining optimal plant growth requires oxygen and nutrient rich water flow at the roots using water circulation pumps.
  5. LED Lights: Indoor CEA requires light. LED (Light Emitting Diode) grow lights are the light technology source for indoor CEA (Controlled Environment Agriculture)
Deep Water Culture (DWC) Hydroponics

Deep Water Culture Hydroponics

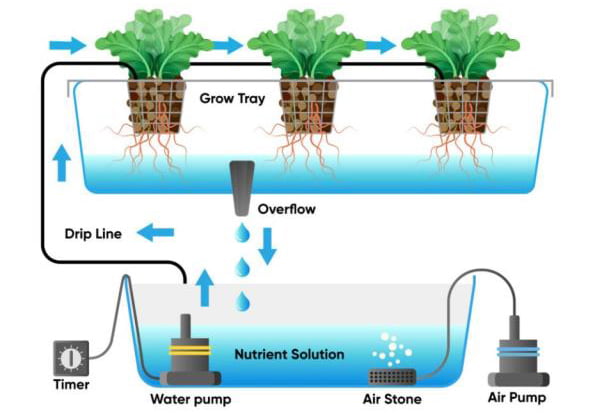

Drip Irrigation Hydroponics

A drip system is an active hydroponic grow system that maintains optimal water usage with a pump to feed the plants with balanced nutrients and water. The drip system uses small emitters and timers to drip the nutrient solution near the plant root. Designed for growing vine crops, root crops, strawberries, onions, flowers, and tree seedings.

There are 4 critical parts to a drip irrigation system.

  1. Plants are housed in a container using a substrate (or soil) and a hydroponic solution reservoir that contains the nutrient solution.
  2. A water pump sends the nutrient solution through a drip manifold, which has several drip lines corresponding to the number of plants in the system.
  3. Drip irrigation technology requires a grow media (substrate) for use in drip hydroponics for the plants to grow
  4. LED Lights: LED (Light Emitting Diode) grow lights are used with Drip irrigation
Drip Irrigation Hydroponics

Drip Irrigation Hydroponics

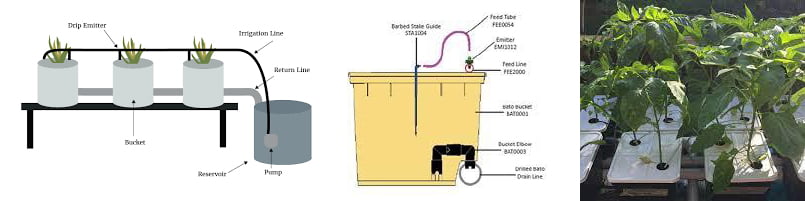

Dutch Bucket Hydroponic Technology

Dutch Bucket growing technology uses one large bucket/reservoir that holds substrate, a bottom draining water (nutrient) reservoir, combined with drip irrigation and drip emitters. Dutch Buckets are used for long term plants that require large area for root development area, like potatoes. Excellent for root crops like potatoes, carrots, radishes, turnips and beets and vine crops like tomatoes, peppers, cucumbers, and grapes.

There are 4 critical parts to Dutch Bucket grow systems:

  1. Each bucket is for deep long-term root plants like potatoes, tomatoes, peppers, cucumbers, & grapes. Also used for carrots & radishes
  2. Designed to retain a specific amount of nutrient in the bottom of the bucket.
  3. Drip system: The drip lines to feed slowly feed the plants. Nutrient & Substrate designed specific for each type of crop.
  4. Drainpipe: is attached to each bucket, then connected to a main manifold to collect and re-circulate the nutrient.
Dutch Bucket Hydroponics

Dutch Bucket Hydroponic

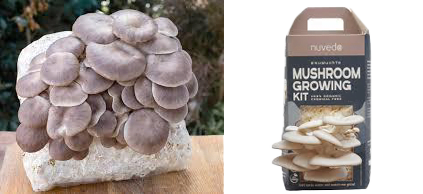

Mushroom Kit Technology

Growing Mushrooms in a CEA environment is a great addition to a food-sustainable complex like the AGG CEAPlex modular. Mushrooms are a healthy addition to any diet. Mushrooms are best grown indoors where the airflow, humidity, temperature, and light conditions can be more readily managed.

There are 4 critical parts to grow oyster mushrooms in the CEAPlex

  1. The growing technology is supplied in a very simple to use kit
  2. All natural ingredients. The kit contains a mushroom culture grown on pure hardwood sawdust and organic Canadian wheat bran.
  3. One kit (block) can produce mushrooms 3-4 times.
  4. After the first harvest, the second, third, and fourth harvest will be a bit smaller than the first one.
Mushroom Kit Technology

CEAPlex Training & Support

TRAINING:
a 60-day comprehensive hands-on grower operations and technology training program is available at the Alta-CEA Training Center for your grower techs and management while your modular unit is being built, delivered, and assembled.

TECHNICAL SUPPORT:
24/7 Technical and Advisor support is available by phone, and internet streaming.

GROWER SUPPLIES:
Customer Service & Online order processing for all grower supplies including seed, germination trays, substrate, grow rafts, and nutrient.

EQUIPMENT SUPPORT:
Customer Service & Online support for grower equipment, parts and warranty.

Alta-CEA, FEEDPlex – Hydroponic “Vertical Pasture” Technology

FEEDPlex Hydroponic Vertical Pasture Technology is a “Turnkey” complex designed to support production of animal feed that is lost due to hurricanes, typhoons, severe weather & drought, and pastureland contaminated by sea salt. Humanitarian aid is always the major focus when disaster strikes, and rightfully so, but re-establishment of livestock animals should also be a pre-requisite to help bring back the quality of life.

FEEDPlex is designed to be a quick response to support the local reintroduction of livestock using indoor hydroponic production of animal feed crops.

Use FEEDPlex with:

  1. Premanufactured turnkey modulars, ready to be assembled by professionals, at the end-user’s location
  2. Multi-level hydroponic grow beds to maximize feed production using controlled environment agriculture (CEA), LED light spectrum technology to mimic mother nature, advanced nutrient delivery system, and over bed air flow
  3. Rotational designed daily harvesting to maximize feed production.
  4. Daily fresh harvested, high yielding Industrial Hemp or Legume forage, with in-house chopped processing to ensure maximum crude protein levels that are comparable to that of dehydrated or sun-cured alfalfa pellets or cubes.
  5. Barley or fodder mats with 7 day harvesting cycles.
  6. Operation staff support using indoor change room, lunchroom, and admin office.
  7. HVAC controlled indoor environment.

FEEDPlex – CEA Vertical Pasture

The Complete Turnkey Self Contained Complex Includes:

(1) 6, 12 ft x 60 ft Modulars, Engineered and Designed For CEA Production

(2) Freight Delivery, assembly, and setup

(3) Total Complex footprint, 5122 sq ft

(4) Operational Staff Change Room, lunchroom, and admin for 8 people

(5) Dedicated area for feed chopper and seed storage

(6) Shipping & Receiving

(7) 3000 sq ft growing area

The Complete Turnkey Self Contained Production Includes:

(1) 42 Grow Modules with 84 Grow Beds

(2) Individual HVAC & Dehumidification in each Modular

(3) Tunable LED’s specific to hemp, legume, and barley grass production

(4) Self Contained water storage

(5) Automatic nutrient delivery system

(6) Germination Room with LED’s & dedicated germination trays

(7) Dedicated Harvesting Areas

(8) Supplied hemp or legume seed, barley seed, & wheat seed

(9) Feed Chopper with Bag Filling Attachment
