Off-Grid Water Purification System | Max Pure

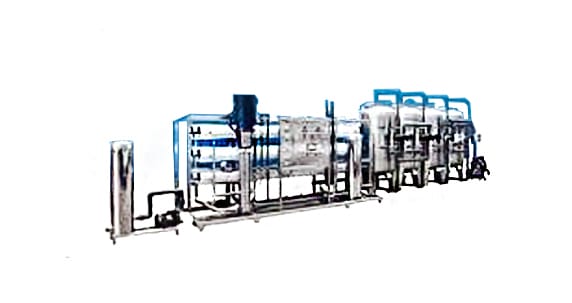

These systems are “multi-stage,” meaning the water passes through several different purification steps. The exact process can be customized based on the quality of the source water (e.g., muddy river water requires more pre-filtration than well water), but it generally follows these steps:

Step 1: Intake and Pre-Treatment

• Intake: A pump draws “raw water” from the source (lake, river, borehole, etc.).
• Screening: The water first passes through a basic screen to block large debris like leaves, twigs, and rocks.

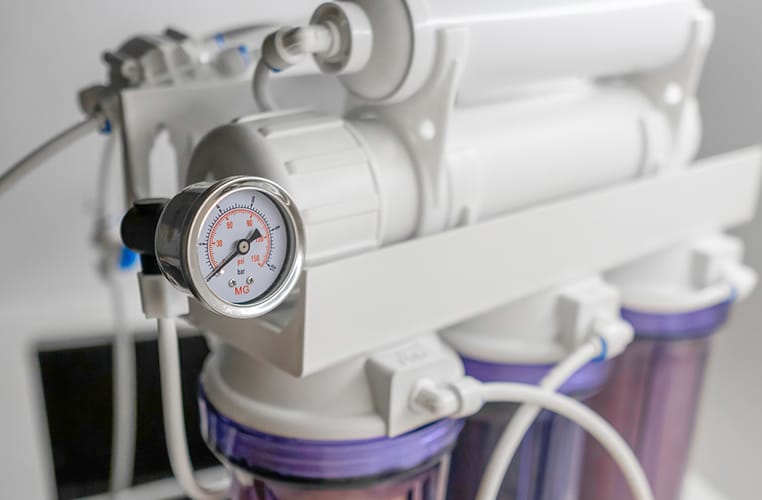

• Media Filtration: It’s then pumped through tanks filled with layers of media, like sand and gravel. This “multi-media filter” removes smaller suspended solids, such as silt, sand, and mud, making the water less cloudy (reducing turbidity).

Step 2: Primary Purification (The Core)

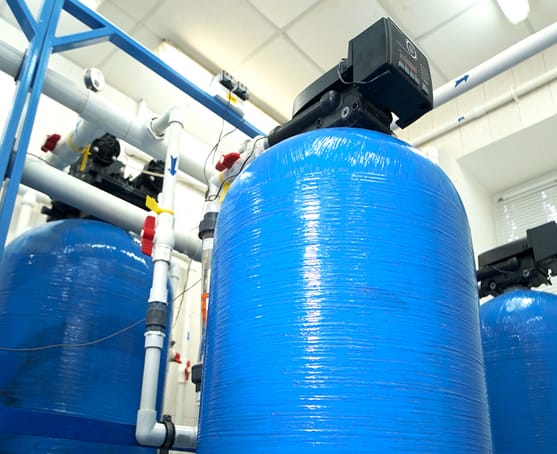

This is the main step to remove fine particles, bacteria, viruses, and dissolved contaminants. The system will typically use one of two key membrane technologies:

• Ultrafiltration (UF): The water is forced through a membrane with microscopic pores (around 0.01 to 0.1 microns). This acts as a physical barrier, blocking virtually all bacteria, viruses, and any remaining suspended solids.

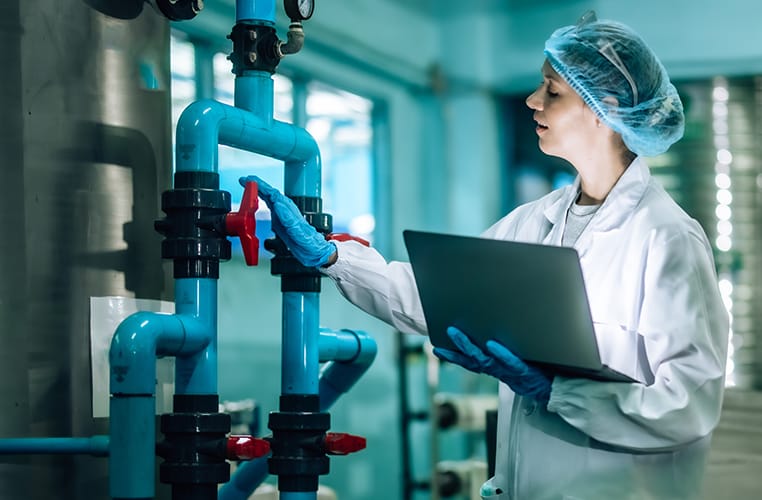

• Reverse Osmosis (RO): This is used for more contaminated water or for desalination (removing salt). The water is forced at high pressure against an even finer membrane. RO can remove dissolved solids, salts, chemicals (like lead or arsenic), and other microscopic contaminants that UF might miss.

Step 3: Disinfection (The Final Polish)
After the main purification, the water undergoes a final “kill step” to ensure it is 100% safe and to prevent re-contamination.

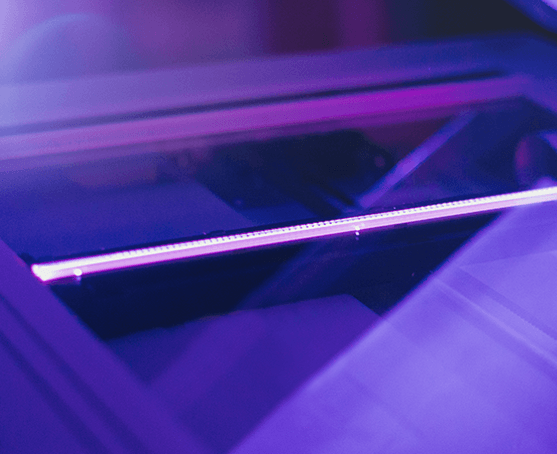

• UV (Ultraviolet) Sterilization: The water flows past a powerful UV lamp. The ultraviolet light instantly neutralizes the DNA of any remaining bacteria, viruses, or other microbes, making them harmless. This is a chemical-free method of disinfection.

Step 4: Storage and Distribution

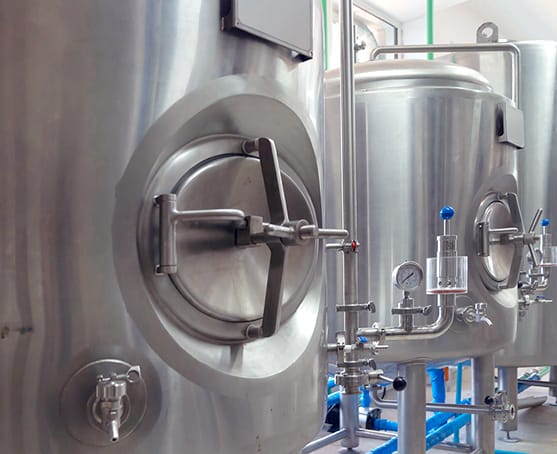

The final, purified water (now “potable water”) is sent to a large, clean storage tank, ready to be accessed by the community through taps and distribution points.

The advantages of Max Pure system for remote communities, disaster relief, or industrial sites are numerous:

Rapid Deployment:

A containerized system is factory-built and tested. It can be delivered and made operational in a matter of days, as opposed to the years it would take to build a traditional water treatment plant.

Self-Sufficiency:

This is the primary benefit. It provides a life-saving resource—clean water in areas with no existing infrastructure. It doesn’t rely on a vulnerable power grids or aging municipal pipes.

Improved Public Health:

It provides immediate, reliable access to safe drinking water, which is the single most effective way to prevent waterborne diseases like cholera, typhoid, and dysentery.

Cost-Effectiveness:

It is far cheaper than the massive civil engineering project of laying many miles of power lines and water pipelines to a remote area.

Scalability (Modularity):

A community can start with one unit that meets its current needs. As the population grows, they can simply add a second or third modular unit to increase capacity.

Resilience and Disaster Relief:

These systems are perfect for disaster zones. After an earthquake or flood destroys municipal infrastructure, a containerized water system can be trucked in to provide immediate, clean water for survivors and relief workers.

Environmental Sustainability:

When paired with solar power, the system runs on 100% renewable energy. It also drastically reduces the reliance on single-use plastic bottles, which are often the only other source of clean water in these locations.
