Level 3 EV Chargers & DC EV Charging Stations
What Is a Level 3 Charger?
The speed of level 3 charging makes it an attractive option for businesses that rely on electric vehicles, such as delivery companies or ride-share services. With level 3 charging, you can recharge your electric vehicle fleet quickly and efficiently, reducing downtime and ensuring that your vehicles are always ready to hit the road.
Another benefit of level 3 charging is that it’s designed to be more convenient for drivers. Level 3 chargers are typically located in public areas, such as gas stations, shopping centers, or rest stops, making them accessible to drivers on the go. Plus, with faster charging times, drivers can spend less time waiting for their vehicle to charge and more time getting back to work.
However, it’s important to note that not all electric vehicles are compatible with level 3 charging. Before investing in a level 3 charger, you’ll need to make sure that your electric vehicles are equipped to handle the high voltage and current of level 3 charging.
BizReps is a manufacturer’s representative which means we are the authorized sales department for several EV Charger Manufacturers. But we are more than just a sales agency, and because of our relationship with our manufacturers, we work with clients to determine their needs and to recommend which EV Charging system will work best for them. We also provide complete turnkey solutions from selection to ordering through to delivery, installation, and training. This is what makes BizReps a true solutions provider.
Which Level 3 DC Charger Is Best for You?
BizReps offer three DC charging stations each designed to meet a specific purpose. We have provided the basic technical specs below and encourage you to contact us to help assist in selecting the right charger for your business.

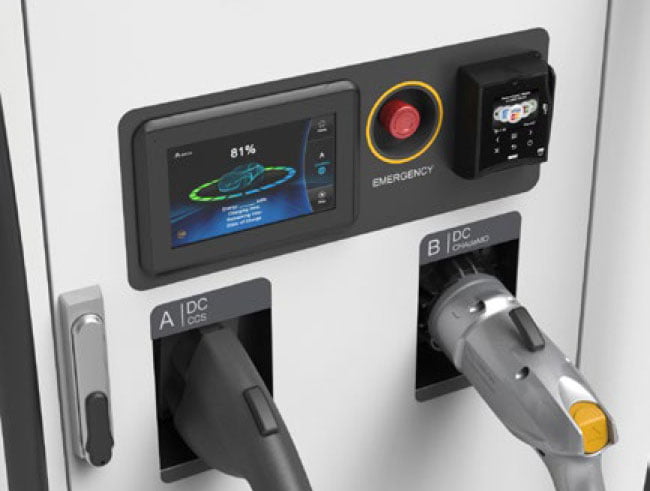

The Delta DC EV Charging Station
Speed up Urban Life with EV Fast Charging
DC City Charger is an ideal solution for high efficiency urban charging service. It supports simultaneous charging output and load distribution to optimize utilization rate of the charging site. DC City Charger is compatible to OCPP which allows further back-end system integration like user management, remote control, and energy management.
Features
- 50kW / 100kW simultaneous charging
- Dynamic load distribution optimizes charging service
- RFID, credit card and ISO 15118* user identification
- OCPP and network connectivity enables system integration
- Modular design ensures high availability
- IP55 and small footprint provides high adaptability
- 94% power efficiency for energy-saving
Efficient Charging Service
- Simultaneous Charging
- Dynamic Load Distribution
- 94% Power Efficiency
- ISO 15118* Authentication
Complete System Integration
- Network Connectivity
- Backend Compatibility
- Energy Management
Optimal Operation
- All-Weather Outdoor Design
- Low Lifecycle Cost
- High Availability Service
- OTA Management

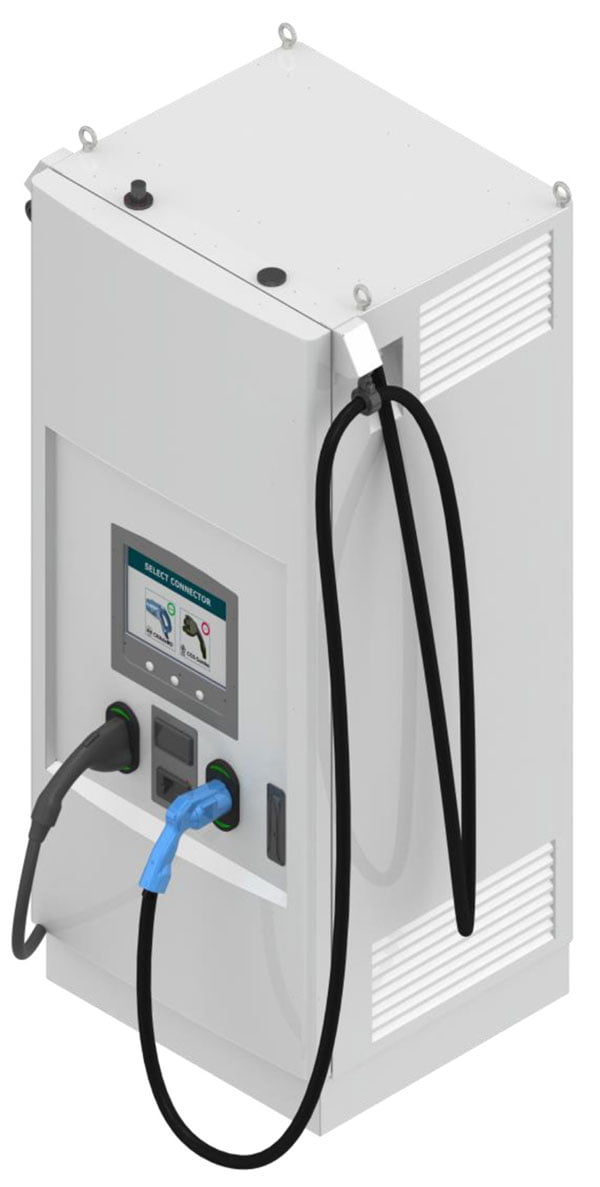

BTCPower 100kW DC Fast Charger
Charge a vehicle to 80% from ZERO in as little as 20 minutes! The system features both CHAdeMO and SAE Combo for compatibility with currently available electric vehicles.
Level 4 Electric Vehicle charging allows for quickly charging the vehicle battery directly, bypassing the vehicle on-board charger. This arrangement is faster and more efficient than high voltage AC charging.
Environmental and Compliance
Ambient Condition
-30 °C to +50 °C, 95% Humidity
Non-Condensing, 6000 ft Altitude, NEMA 3R
Safety Compliance
In Process ETL Certification.
Complies with UL 2202, UL 2231 UL50E,
NEC Article 625, CSA STD C22.2 No. 107.1,
FCC Part 15 Class A
Technical Specification
Standard
- Integrated Cord Retractor (for CCS1)
- 15” Outdoor Color Display
- Connector Configuration:
- CHAdeMO and SAE J1772 Combo CCS1
- Payment types (OCPP Network Enabled):
- Credit Card Reader
- RFID
Optional
- ISO 15118: 2014
- 4G Modem
- Connector Configuration:
- Dual SAE J1772 Combo CCS1
- Single CHAdeMO
- Single SAE J1772 Combo CCS1
Parameters
Model: L3R-100-480
Power Rating: 100 kW
Dual Port Charging Topology: 100 kW Single Output or 50 kW Parallel Output
Connector: SAE J1772 Combo CCS1 | CHAdeMO
Max Current: 200 A | 200 A
Max Voltage: 50-920V | 50-500V
Efficiency Rating: > 92%
Network Compatibility: OCPP 1.5/1.6, BTCP Network
Input Power: 480VAC-3P@132A
Input Power AC Current (FLA): 132 A
Dimension: 38” W x 30” D x 82”H
Weight: 1,350 lbs.
BTCPower 50kW Slim Line DC Fast Charger
Charge a vehicle to 80% from ZERO in as little as 20 minutes! The system features both CHAdeMO and SAE Combo for compatibility with currently available electric vehicles.
Level 3 Electric Vehicle charging allows for quickly charging the vehicle battery directly, bypassing the vehicle on-board charger. This arrangement is faster and more efficient than high voltage AC charging.
Environmental and Compliance
Ambient Condition
-30 °C to +50 °C, 95% Humidity
Non-Condensing, 6000 ft Altitude, NEMA 3R
In Process ETL Certification.
Complies with UL 2202, UL 2231 UL50E,
NEC Article 625, CSA STD C22.2 No. 107.1,
FCC Part 15 Class A
Technical Specification
- Integrated Cord Retractors
- 15” Outdoor Color Display
- Connector Configuration:
- SAE J1772 CCS1 and CHAdeMO
- Payment types (OCPP Network Enabled):
- Credit Card Reader
- RFID
Optional
- ISO 15118: 2014
- 4G Modem
- Connector Configuration:
- Dual SAE J1772 Combo CCS1
- Single CHAdeMO
- Single SAE J1772 Combo CCS1
Parameters
Model: L3S-50-480-01-003 / L3S-50-208-01-003
Power Rating: 50 kW / 50 kW
Connector/Protocol: CHAdeMO, SAE J1772 Combo CCS1
Network Compatibility: OCPP 1.5-1.6, BTCP Network
Access Control – Communication: RFID, Credit Card – 4G, Cat-5 Ethernet
Input Power VAC 3 Phase: 480 VAC / 208 VAC
Input Power AC Current (FLA): 72 A / 166 A
Efficiency Rating: > 90%
Max Output DC Current: 125 A
Max Output DC Voltage: 50 – 500 V
Surge Protection: 6000 VAC
Dimension: 34″ W x 86″ H x 22″ D
Weight: 850 lbs.

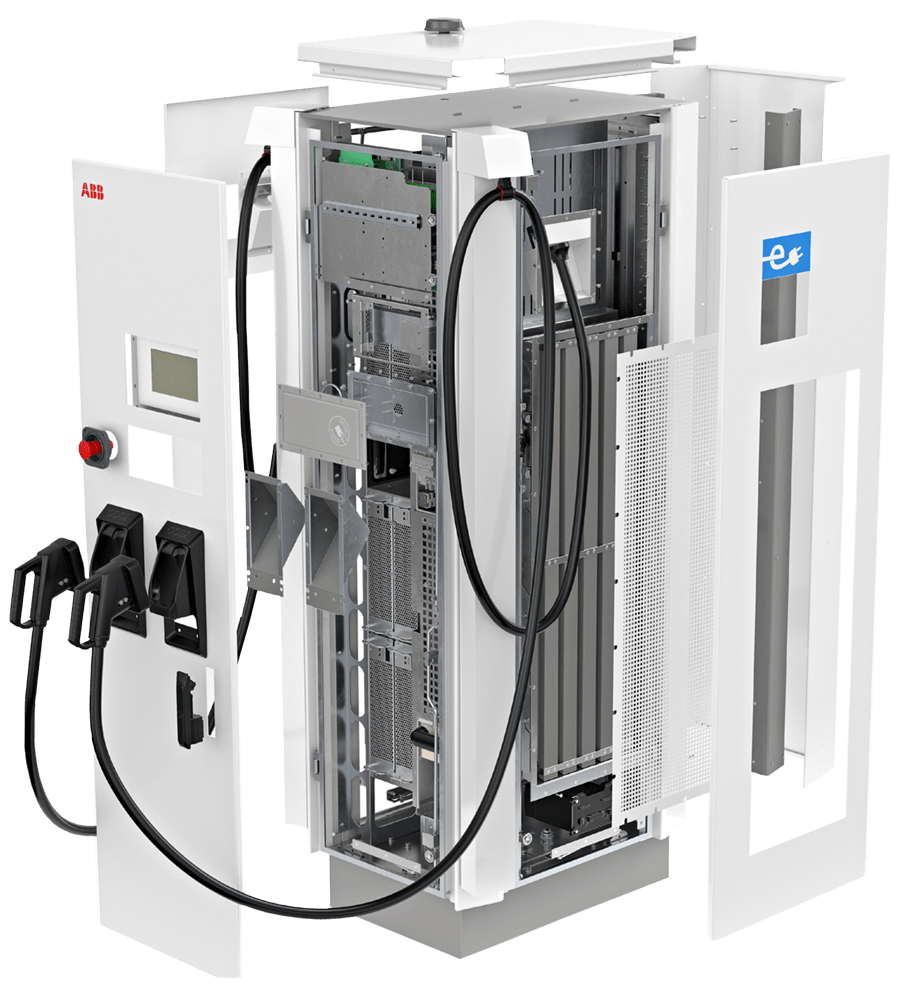

ABB Terra 94/124/184 DC Fast Charger
Terra fast chargers: The most deployed DC fast chargers in the world.
ABB has more than 135 years of heritage in electrification technology leadership and a world-class EV charging portfolio for safe, smart, and sustainable mobility – from the vehicle to grid.
Features
- Installed worldwide 17,000+
- in operation across 80+ countries
- R&D and interoperability tested with 50+ OEMs
CONNECTED by cellular modem for 24/7 remote services, receiving updates over-the-air to support every new EV on the road – plus easy remote OCPP integration.
LCD touchscreen with high brightness and graphical visualization of the charging process
SAFETY Emergency stop push button to immediately stop charging operation
COMPACT, UPGRADABLE power modules to support
increasing demand from more EVs with bigger batteries – in a very easy to service package.
ROBUST all-weather powder-coated stainless steel
enclosure
CONVENIENCE and hassle-free reach for users – with retractable cable management option
GREATER revenue potential with simultaneous charging for 2 electric vehicles, including CCS and CHAdeMO
combinations
EASY installation design with fast remote commissioning
and start-up
AUTOMATIC authentication capability via CCS connector in the vehicle thanks to easy OCPP integration and Auto charge functionality
MAX CHARGING POWER
Terra 94: 90 kW
Terra 124: 120 kW (and 2 x 60 kW)
Terra 184: 180 kW (and 2 x 90 kW)
MAX CHARGING VOLTAGE
CCS 920 VDC
CHAdeMO 500 VDC
DIMENSIONS
Height 1900 mm / 74.8 in
Width 5655 mm / 222.6 in
Depth 880 mm / 34.6 in
Weight 395 kg / 871 lbs.
Why Terra 94/124/184?
Advanced, flexible, compact, and smart
Power sharing for high utilization
- Terra 124 and Terra 184 can charge two vehicles
simultaneously - High utilization of charging assets benefits both
public and fleet business models - Supports all open charging standards in
flexible configurations - Safety certified to the highest standards
Future-proof, flexible high- voltage technology
- Flexible, redundant power architecture
supports high uptime - High voltage charging range up to 920 V
- Fully compatible with current and future EVs
- Option to upgrade power over time, from 90 kW
up to 180 kW, to follow EV market growth
Reliable, compact, and flexible design
- Based on the Terra platform, the most widely
deployed DCFC family in the world - Space-saving, all-in-one footprint with very easy
installation and servicing - Robust construction for all operational
environments - Cable management options enhance longevity
Always connected, always smart
- 24/7 connectivity, 99.5% ABB network uptime
- Remote services with remote firmware updates
and upgrades - OCPP integration ready as well as ABB Web
- Tools functionality
- Auto charge and ISO 15118-ready for plug and
charge operation
Fast charging beyond 50 kW
Power sharing delivers high utilization
90kW Charging Points
Terra chargers can provide a quick refill adding 100 miles of range in as little as 15 minutes (Terra 94) or 30 minutes (Terra 54). *
Retail/Shopping Sites
The Terra 124 charger can provide a full battery charge to two vehicles simultaneously while drivers are shopping, dining or at the movies.
Highway corridors and Fleets
The Terra 184 chargers can add 100 miles of range in as little as 10 minutes as well as fast charge two vehicles at the same time in less than 20 minutes. *
* actual charging speed depends and charging conditions. On the electric vehicle model(s)
Designed for flexibility
A configuration for every use case
Terra 54/94/124/184 C
Single outlet CCS with cable
management system
Terra 54/94/124/184 CC
Dual outlet CCS with cable
management system
Terra 54/94/124/184 CJ
Dual outlet CCS and CHAdeMO
with cable management
system and credit card reader
Power levels
- 50 kW
- 90 kW
- 120 kW / 60 kW shared
- 180 kW / 90 kW shared Charging standard
Charging standards
- CCS+CHAdeMO
- CCS-only single outlet
- CCS-only dual outlet Cable managemen
Cable management
- Reliable, tested system
- Factory or field install User access / payment
User access / payment
- OCPP Integration
- Credit card reader
- PIN via Web Tools
- Autocharge/ISO 15118
